Synchronized Tremolo Adjustment Workshop!
Tips for setting up floating

Even after tuning, the tuning goes out of whack...
I want to do arm raises, but I can't...
First of all, what exactly is floating??? etc.

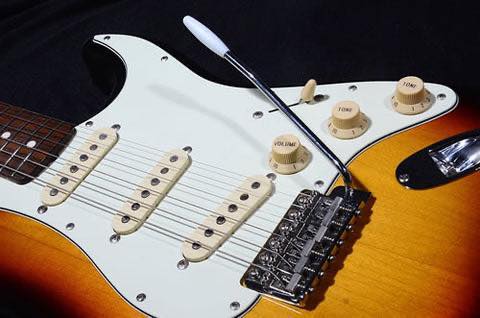

The Stratocaster is the most classic model, but if it's not properly adjusted, the tremolo won't work effectively.

You can find that iconic Stratocaster here!!

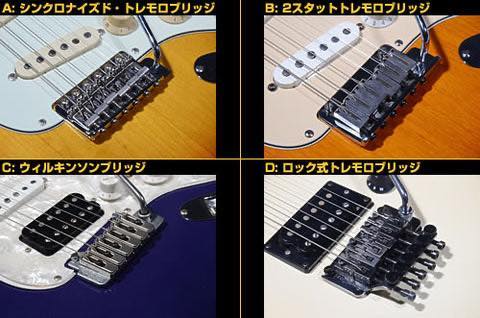

There are various types of bridges, but in this lesson, we will be able to adjust types A and B.

Click here for guitars equipped with a synchronized tremolo bridge >>
Guitars with a 2-stud tremolo bridge are available here >>
Click here for guitars equipped with a Wilkinson bridge >>
Guitars with locking tremolo bridges are available here >>

Floating means floating! In other words, floating means the bridge is floating away from the body.
To create a floating state, the tension of the strings and the springs on the back of the body are used to achieve balance.
This allows you to raise the tonearm (increase the pitch).

Models that allow you to use the arm via floating are available here.

When adjusting the floating mechanism, the most crucial part is the spring on the back of the body.♪This spring is used to balance the tension of the strings.
The number of springs is generally three.

You can find the Fender Stratocaster, which created the three distinct styles, here.

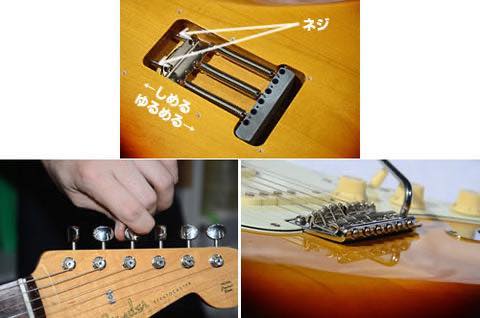

Step 1: Determine the string height and temporarily fix the bridge to the body.

When the bridge does not lift away from the body after tuning, this is called a "flat-fitting" state. Tighten the two screws on the back of the body so that the bridge remains attached to the body even when tuning. This state is our starting point.

Step 2: Tune the guitar and slightly raise the bridge.

Loosen the screw on the back of the body by about one turn. The spring will loosen, and the tuning will drop slightly. (If it doesn't drop, loosen the screw further.) When you tune again, the bridge will gradually lift up.

Using a high-precision tuner ensures accurate tuning!

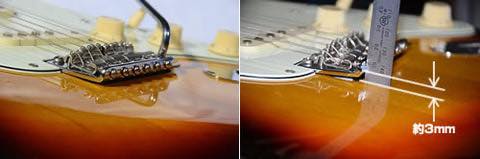

Step 3: Stabilize the float to approximately 3mm.

By repeatedly loosening the screws, tuning, loosening the screws, and tuning, you can create a state where the bridge is floating about 3mm. Once the tuning is stable, the floating adjustment is complete.

I think you've now mastered float adjustment!!

If you're looking to level up and master the locking bridge, click here.

Three, arranged in the shape of the character for "river".

This is the foundation of everything. Simple is best!!

One-sided diagonal shoulder strap

By considering the difference in tension between the 6th and 1st strings, and attaching the spring diagonally only to the 6th string, the spring tension is increased, ensuring tuning stability during tremolo use!

Two poles, angled in a V-shape.

For those who use thin gauge strings. Perfect for those who excel at technical playing with a soft touch!!

Standard 5-string

By using five springs, the tension on each individual spring is weak. The springs vibrate more freely due to the string vibrations, resulting in the most brilliant sound.

A five-pronged Chinese

A man's setup with all five springs tightened to their limit, ensuring absolutely no floating. Perfectly fitted is best!!

Of course, we also offer instrument checkups and setup services at our shop!!
